ILLUMINATION

Reference Classic Dynamic

In Ear Monitors

Faithful to original sound:
Demanding standards makes accurate reproduction of recording possible

A Flagship Product Emsembling Our Guiding

A flagship product elucidates a brand's belief and what they pursue. Ubder this concept resides the belief of a team,a group,and the hope we embodied into the brand name. The flagship that resembles... Our guiding Light (Illumination)

​

                                               MOONDROP CO., Team

5 AXIS MILLED TITANIUM ALLOY

HOUSING/ANTI SCRATCHING TIN PLATING

Extremely sturdy golden surface keeps the earphone nice and shiny. It barely leaves a trace even ehen scratched with a knife.

LIQUID CRYSTAL POLYMER DOME + PEEK HIGH DAMPING FACTOR SUSPENSION

The frequency response dives up to 10Hz in the bass and 50kHz in treble(Measured under 1/4Inch Free Field Mic)

PATENTED 11MM HIGH PERFORMANCE DYNAMIC DRIVER

(Patent Number: ZL202020277412.0)

1.6T flux N52 external magnet architecture,CNC milled high magnet coducting circuit. Coaxial 7 vents + independent brass back chamber design accurately control resonant frequency. Japan imported 0.035mm CCAW coil, lightweight suspension design. Independent copper support frame significantly reduces magnet leakage

(Patent Number: ZL202020277412.0)

PATENTED Coupled Acoustic Chamber Structure

Engineered with respect to resonance nature, the front chamber supperssees undesired resonance that causes rough treble. Special pressure relieving structure control the bass response and transients, while relieving standing waves. So that the IEM  can bring a smooth full band response.

Realistic, Natural Tone

Frequency closely following original HRTF.

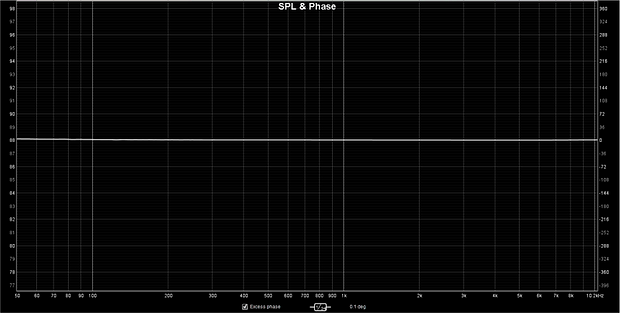

High Consistent Phase Across The Band Accurate Sound Imaging.

Ultea low nonlinear distortion brings clear background

CABLE WITH REPLACEABLE PLUG + OCC COPPER WIRE AND SPC SHIELDING.

Illumination comes with low impedance coaxial structure cable with 6n OCC wire and SPC shielding to bring you clear,clean sound. Replaceable plugs make switching between different sockets easy

Flagship Dynamic In Ear Monitor:Illumination
Frequency Response:
      20-20000Hz (IEC60318-4)
      10-50000Hz (1/4Inch Free field Mic)
Impedance: 259 @1kHz
Sensitivity: 124dB/Nrms@1kHz
THD+N:≤0.3%
Housing Material: 5 axis CNC milled TC4 titanium alloy with TiN plating
Transducer: Patented 11mm high efficiency/performance coupled acoustic chamber dynamic Driver
Diaphragm: Liquid Crystal polymer dome + soft high damping factor PEEK suspension
Coil: 0.035mm daikoku CCAW
Magnet: High flux density N52 neodymium external magnet architecture
Damper: Patented coupled acoustic chamber structure
Socket: 0.78 2pin
Cable: OCC copper with SPC shielding + replaceable plug
